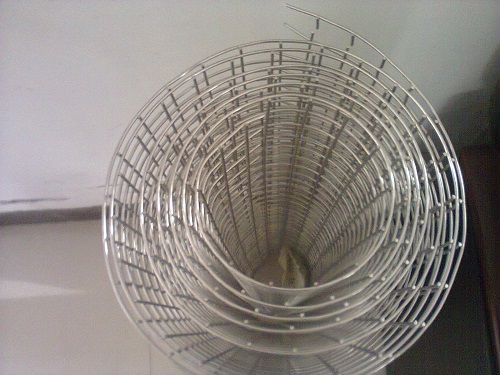

Welded wire mesh is made of selected quality iron wires through high-precision processing. The end product is level and flat, sturdy structure, and even strength throughout, which is widely used in industry, farming, construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock, and decorations etc.
Assortments
-Hot Dipped Galvanized After / Before Welding; - Electro Galvanized After / Before Welding; - PVC Coating With Green, Black, Color, etc. - Welded Mesh made of Stainless Steel Wire.
Material : low carbon steel wire, stainless steel wire, galvanized steel wire, PVC coated iron wire in blue ,green ,yellow and other colors.
Features
Smooth and trim mesh surface, solid and uniform structure and superior integral performance, it won't loosen even subject to local cutting or pressure, It has the characteristics of corrosion-resisting and oxidation-resisting.
Usage
Welded wire mesh is extensively used in industry and agriculture construction, transportation and mining for all such purposes as poultry houses, egg baskets,runway enclosures, floor heating draining rack, fruit drying screen, fence, fruit drying screen, fence and other industries .
Packing

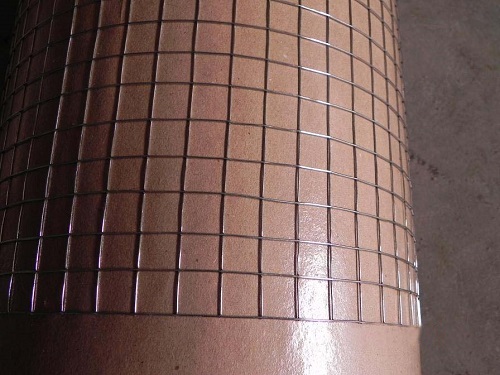

Moist-proof paper, shrink bag, loose packing, special packing can be arranged upon request
Specification List (Customization is also available)
Specification;in;British;System | Specification;in;British;System | Packing;Dia.(mm) |
Width/length:3'x100' | Width/length:0.914mx30.48m |
Width/length:4'x100' | Width/length:1.219mx30.48m |
Mesh | ; | Wire;Dia.;in;BWG | Mesh | Wire;Dia. |
1"x2" | ; | 14 | 25.4mmx50.8mm | 2.10mm | 390 |
1"x2" | ; | 15 | 25.4mmx50.8mm | 1.82mm | 360 |
1"x2" | ; | 16 | 25.4mmx50.8mm | 1.65mm | 320 |
1"x2" | ; | 17 | 25.4mmx50.8mm | 1.47mm | 310 |
1"x1" | ; | 14 | 25.4mmx25.4mm | 2.10mm | 400 |
1"x1" | ; | 15 | 25.4mmx25.4mm | 1.82mm | 370 |
1"x1" | ; | 16 | 25.4mmx25.4mm | 1.65mm | 330 |
1"x1" | ; | 17 | 25.4mmx25.4mm | 1.47mm | 320 |
1"x1" | ; | 18 | 25.4mmx25.4mm | 1.24mm | 280 |
1"x1" | ; | 19 | 25.4mmx25.4mm | 1.06mm | 255 |
3/4"x3/4" | ; | 16 | 19.05mmx19.05mm | 1.65mm | 350 |
3/4"x3/4" | ; | 17 | 19.05mmx19.05mm | 1.47mm | 330 |
3/4"x3/4" | ; | 18 | 19.05mmx19.05mm | 1.24mm | 290 |
3/4"x3/4" | ; | 19 | 19.05mmx19.05mm | 1.06mm | 260 |
3/4"x3/4" | ; | 20 | 19.05mmx19.05mm | 0.88mm | 240 |
1/2"x1" | ; | 17 | 12.7mmx25.4mm | 1.47mm | 335 |
1/2"x1" | ; | 18 | 12.7mmx25.4mm | 1.24mm | 300 |
1/2"x1" | ; | 19 | 12.7mmx25.4mm | 1.06mm | 265 |
1/2"x1/2" | ; | 18 | 12.7mmx12.7mm | 1.24mm | 300 |
1/2"x1/2" | ; | 19 | 12.7mmx12.7mm | 1.06mm | 275 |
1/2"x1/2" | ; | 20 | 12.7mmx12.7mm | 0.88mm | 250 |
1/2"x1/2" | ; | 21 | 12.7mmx12.7mm | 0.81mm | 230 |
1/2"x1/2" | ; | 22 | 12.7mmx12.7mm | 0.71mm | 215 |
1/4"x1/4" | ; | 23 | 6.35mmx6.35mm | 0.63mm | 215 |
3/8"x3/8" | ; | 21 | 9.35mmx9.35mm | 0.81mm | 250 |

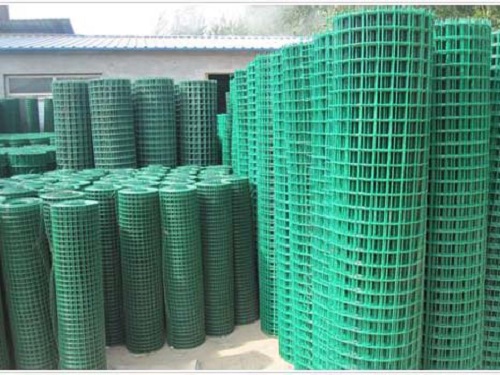

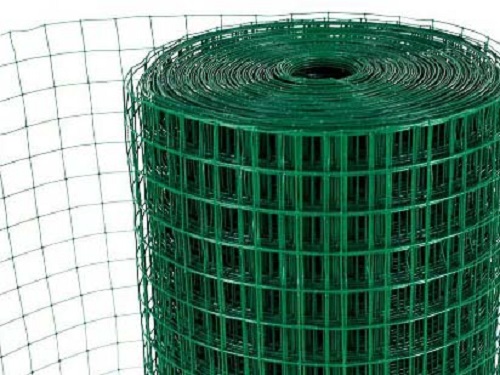

PVC;coated;welded;wire;mesh; |
Gauge; | Mesh; | WXL; | Note:; |
2.0MM/2.6MM; | 4"X;2"; | 100mmX50mm; | 1.gauge:bwg;12;to;24; |
1.9MM/2.5MM; | 3"X;2"; | 75mmX50mm; | 2.mesh:1/4",3/8",5/8",1/2",3/4",1";to;6"; |
1.9MM/2.5MM; | 2"X;2"; | 50mmX50mm; | 3.width:2';to;7'; |
1.9MM/2.5MM; | 2"X;1"; | 50mmX25mm; | 4.length:10';to;300'; |
1.9MM/2.5MM; | 3"X;2"; | 75mmX50mm; | 5.packing:moister-proof;paper;or;pvc;film; |
0.8MM/1.1MM; | 1/2"X1/2"; | 12.5mmX12.5mm; | 6.color:green,black;or;as;special;requirements; |
0.6MM/0.7MM; | 3/4"X;3/4"; | 19.5mmX19.5mm; | ;
|
