Stainless Steel Wire Mesh

Inquire Now

PRODUCT DESCRIPTION

Material

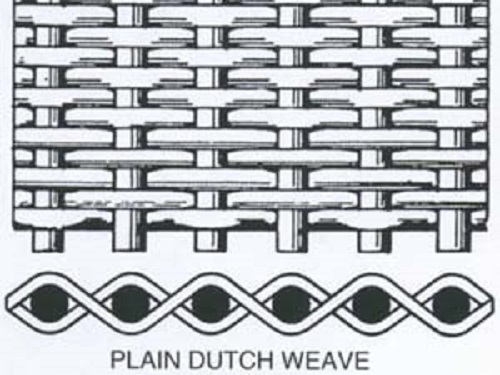

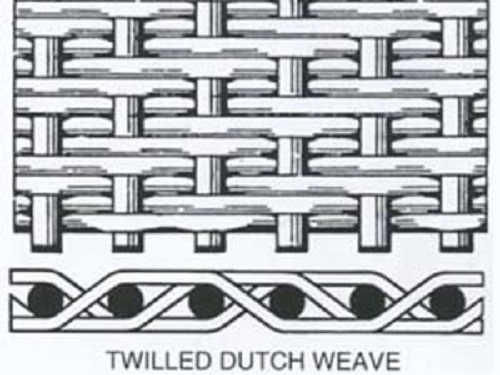

316L ,316, 304HC ,304L ect. Mesh: form 60 to 600Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

Usage

With its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

product range

Usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client's requirement.

Package

Water-proof paper ,woven bag and also can be made as per client requirement

Specification List (Customization is also available)

mesh	wire;diameter		aperture		opening;area;	mesh;weight;(pound)/100square;feet
mesh	Inch	mm	Inch	mm	opening;area;	mesh;weight;(pound)/100square;feet
60X60;	.0075;	.191;	.0092;	.23;	30.5;	23.7;
60X60;	.007;	.178;	.0097;	.25;	33.9;	20.4;
70X70;	.0065;	.165;	.0078;	.20;	29.8;	20.8;
80X80;	.0065;	.165;	.0060;	.15;	23.0;	23.2;
80X80;	.0055;	.140;	.0070;	.18;	31.4;	16.9;
90X90;	.005;	.127;	.0061;	.16;	30.1;	15.8;
100X100;	.0045;	.114;	.0055;	.14;	30.3;	14.2;
100X100;	.004;	.102;	.0060;	.15;	36.0;	11.0;
100X100;	.0035;	.089;	.0065;	.17;	42.3;	8.3;
110X110;	.0040;	.1016;	.0051;	.1295;	30.7;	12.4;
120X120;	.0037;	.0940;	.0064;	.1168;	30.7;	11.6;
150X150;	.0026;	.0660;	.0041;	.1041;	37.4;	7.1;
160X160;	.0025;	.0635;	.0038;	.0965;	36.4;	5.94;
180X180;	.0023;	.0584;	.0033;	.0838;	34.7;	6.7;
200X200;	.0021;	.0533;	.0029;	.0737;	33.6;	6.2;
250X250;	.0016;	.0406;	.0024;	.0610;	36.0;	4.4;
270X270;	.0016;	.0406;	.0021;	.0533;	32.2;	4.7;
300X300;	.0051;	.0381;	.0018;	.0457;	29.7;	3.04;
325X325;	.0014;	.0356;	.0017;	.0432;	30.0;	4.40;
400X400;	.0010;	.0254;	.0015;	.370;	36.0;	3.3;
500X500;	.0010;	.0254;	.0010;	.0254;	25.0;	3.8;
635X635;	.0008;	.0203;	.0008;	.0203;	25.0;	2.63;
