Gabion mesh / gabion box /gabion basket

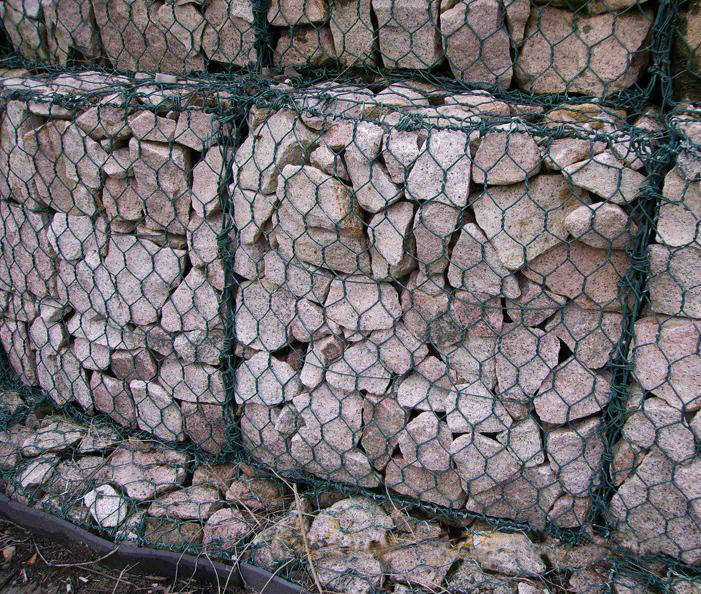

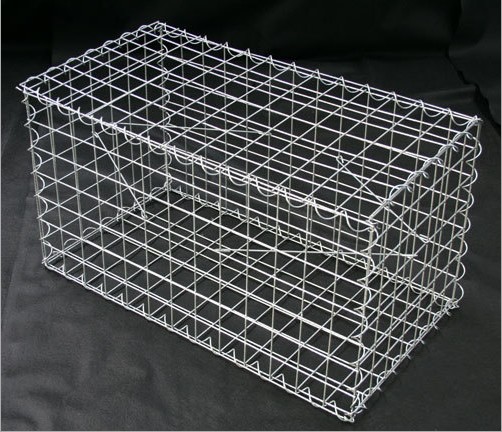

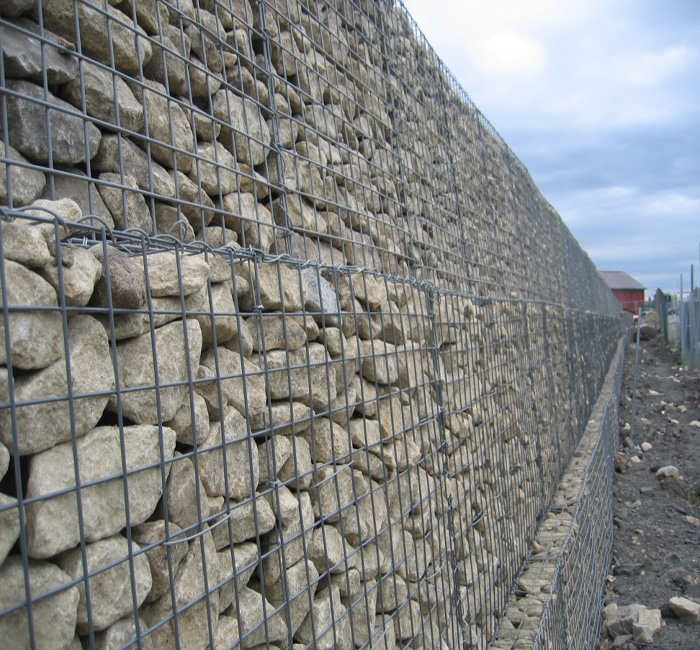

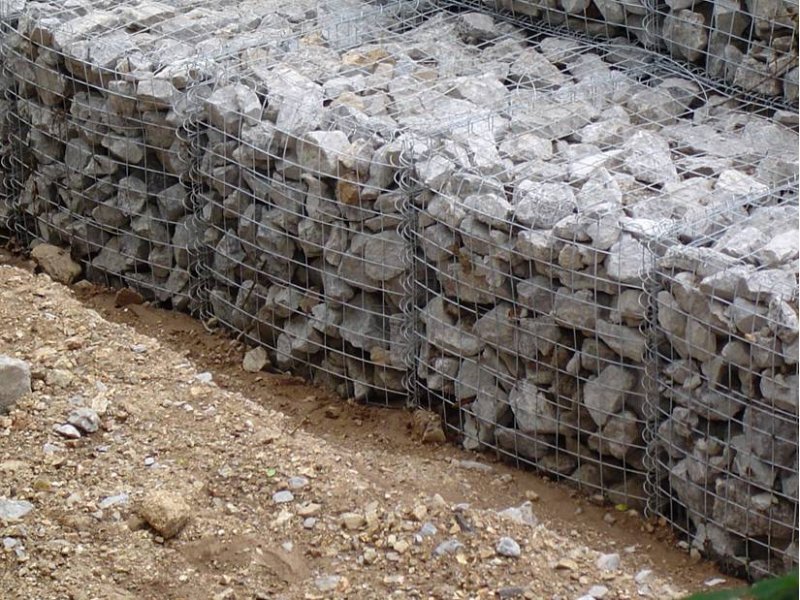

Gabion mesh is known as gabion box, gabion basket, gabion wall, gabion mattresses, rock gabions, welded wire gabions, welded mesh gabions, gabion boxes, stone for gabion price , gabion basket, Welded mesh gabion box , Stone cage etc. the mesh shape has hexagonal style and square style ,and can be finished by electric galvanized.hot dipped galvanized,pvc coated.Connect way of gabion box :by Helical wire,by U post,H post
Materials
Galvanized wire, stainless steel wire
Specification
Opening (mm) | Wire Diameter(Metal Wire)(mm) | Wire Diameter(PVC Coate)/Inner/Outside
(mm) | Strands |
60×80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 3 |
80×100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
80×120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
100×120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
100×150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
120×150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 3 |
Nominal Box sizes(m) | No.ofdiaphragms(no.) | Capacity per box(m3) |
1.0×1.0×0.5 | Nil | 0.50 |
1.0×1.0×1.0 | Nil | 1.00 |
1.5×1.0×0.5 | Nil | 0.75 |
1.×1.0×1.0 | Nil | 1.50 |
2.0×1.0×0.5 | 1 | 1.00 |
2.0×1.0×1.0 | 1 | 2.00 |
3.0×1.0×0.5 | 2 | 1.50 |
3.0×1.0×1.0 | 2 | 3.00 |
4.0×1.0×0.5 | 3 | 2.00 |
4.0×1.0×1.0 | 3 | 4.00 |
Features
1.It is very economical . You just need to put stone in the mesh and then seal it .
2.It is flexible ,corrosion resistant and can stand up to extreme weather.
3.Simple construction,requiring no special technique.
4.The silt between the wire mesh and stone contributes to plant growth.this makes the gabion wire mesh harmonious with the surrounding natural environment .

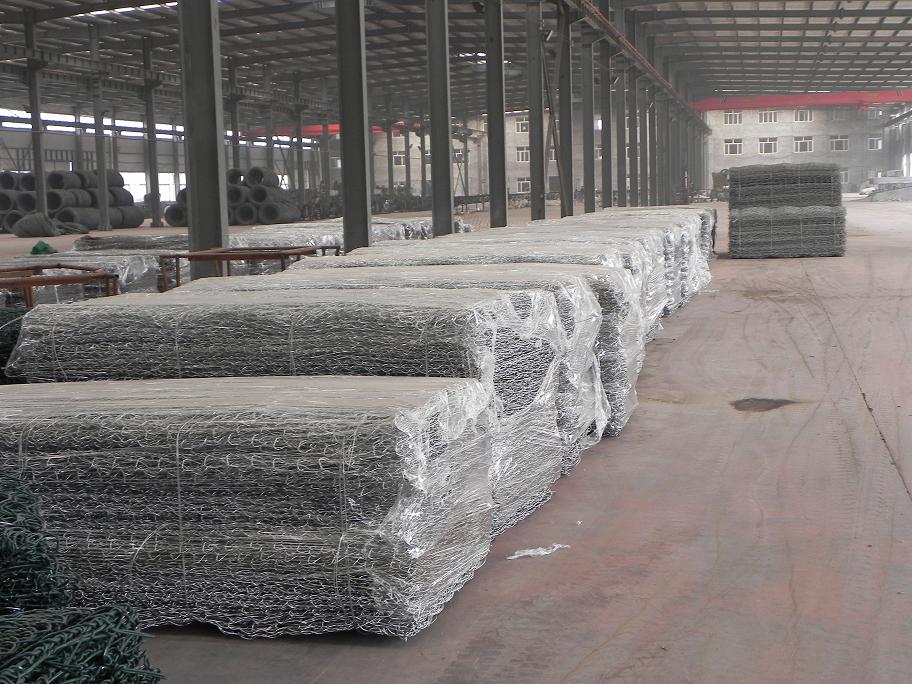

5.The gabion wire mesh is folding and can be assembled site,which saves on transport cost.
Application
1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
8. Port project
9. Keep off dust wall
10.roadway protection.
