Thermal spraying masking tape

Inquire Now

Next

PRODUCT DESCRIPTION

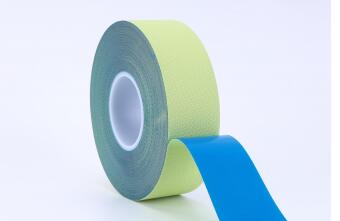

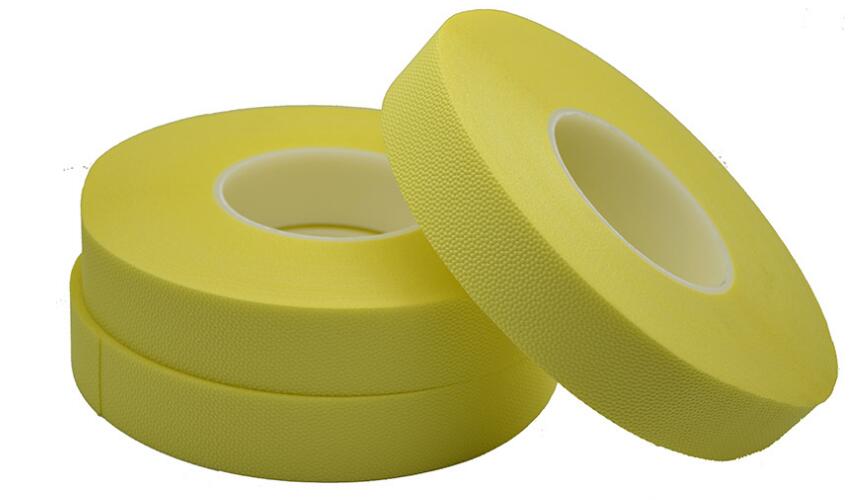

Thermal spraying masking tape


Description


Thermal spray masking tape also called Heat resistance masking tape for thermal spray/ plasma spray masking tape/ Arc Spray Tape /Flame Spray Tape/ Sand Blast Protection Thermal Spray Tape


It is made of silicone rubber bonded glass fiber cloth, the bottom layer is coated with high temperature special silica gel, used for sand blasting and plasma spraying process of shielding protection and not adhesive after removal.Thermal spray tapes provide shielding protection in thermal spray applications, including wire arc, HVOF and conventional plasma spray processes.And it can easily follow the complex shapes of parts in the aircraft manufacturing industry /aerospace industry.


Specification


Thermal spraying masking tape

Model

ML830

ML850

ML860

ML832

ML827


White

thermal spray masking tape.jpg

Blue

Thermal spray masking tap.jpg

Red

Heat resistance masking tape for thermal spray.jpg

White


Aluminum


Carrier Thickness

0.10mm

0.10mm

0.10mm

0.18-0.2mm

-

Total Thickness



0.28mm-0.3mm

0.5mm

0.6mm

0.28-0.3mm

0.19mm

Backing



Glass Cloth



Glass Cloth



Glass Cloth



Glass Cloth



Aluminum foil Glass cloth

Adhesive



Pressure-sensitive Silicone



Pressure-sensitive Silicone



Pressure-sensitive Silicone



Pressure-sensitive Silicone

Pressure-sensitive silicone

Adhesion Force



11.5-13N/25mm

11N/25mm-12N/25mm



11N/25mm-12N/25mm



10N/25mm-12N/25mm



11N/25mm

Tensile Strength



400N/25mm



125N/cm-130N/cm



130N/cm -135N/cm



430N/cm -460N/cm



350N/25mm

Elongation

11-15%

10-15%

10-15%

5-11%

12%

Temp Resistant

260

300

300

260

260

Length

33m

33m

33m

20m

33m

Width

10-500mm

5-970mm



5-970mm

5-1000mm

10-500mm

Features

high viscosity,

high temperature resistance,

High tensile strength, etc.

Excellent high temperature resistance,

Excellent adhesion,

 Good abrasion resistance,

Excellent elasticity

High tensile strength, good temperature resistance, insulation, flame retardant, high tensile strength, no glue residue

Excellent high temperature resistance,

Excellent adhesion,

High tensile strength, etc.

Application

Plasma thermal spraying, supersonic spraying, spray sandblasting shielding protection and other fields.

Plasma, supersonic, flame, vapor deposition and sandblasting processes for special industries such as turbine blades and aerospace components. Can replace Saint-Gobain, green belting, Dewal, Bangtai related products

Plasma thermal spraying, supersonic spraying, spray sandblasting shielding protection and other fields.

Plasma thermal spraying, supersonic spraying, spray sandblasting shielding protection and other fields.


Characteristic

Heat-resistant

Strong tensile strength

excellent temperature resistance

good adhesion force

excellent flexibility


Application


Thermal spray tape is suitable for plasma thermal spraying, supersonic spraying, melt-blasting and sandblasting shielding and protection.

It is widely used in plasma, supersonic, flame, vapor deposition and sandblasting processes in special industries such as turbine blades and aerospace components. Can replace Saint-Gobain, green belting, Dewal, Bangtai related products
