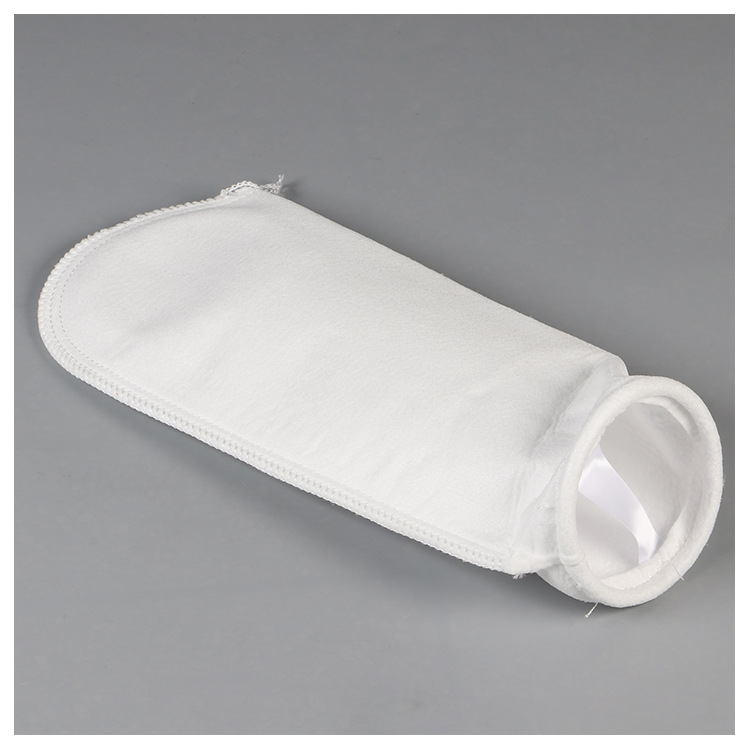

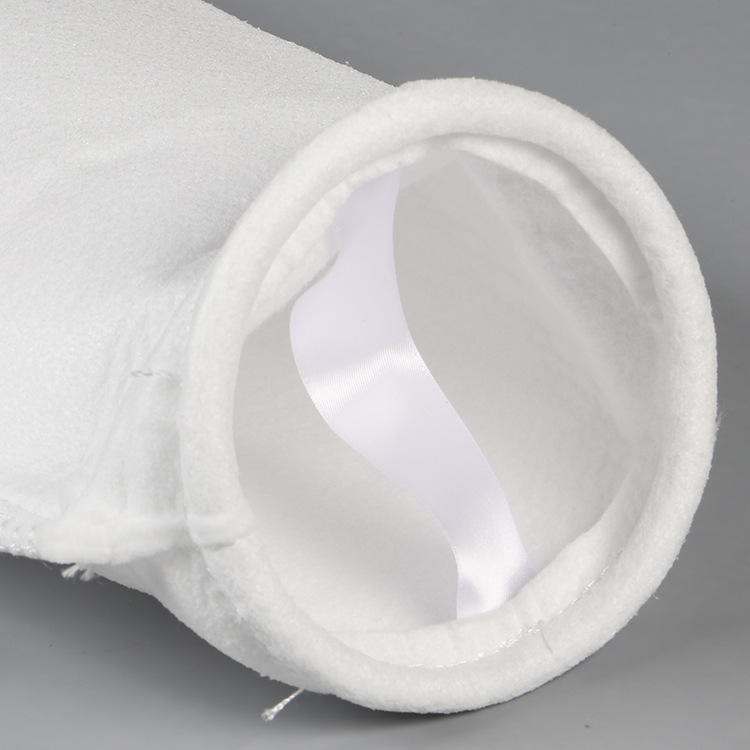

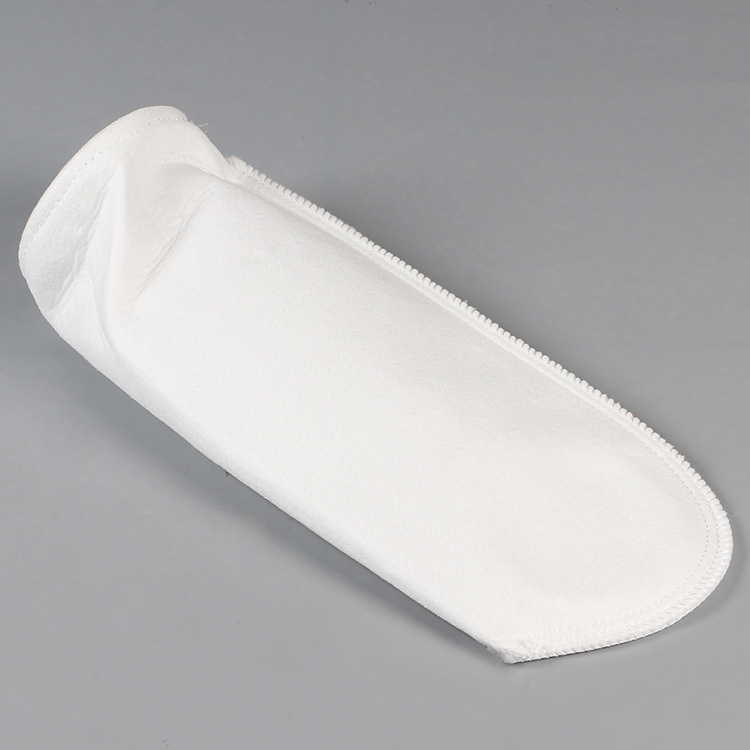

Liquid Filter Bag (Micron filter bag )
This liquid filter bag /Long filter socks can used in many industry . like food and beverage ,automotive ,water treatment ,paint ,pharmaceutical ,electronic , metal processing ,oil industry , refined industry etc.
Material: | PE / PP / NMO |
Max.operating temperature | NMO275-300° F (135-149° C),PE 275-325° F (135-162° C),PP 200-220° F (93-104° C) |
Size: | 180*430mm,180*810mm,105*230mm,105*380mm,150*550mm ,other size is customized |
Filtration accuracy: | 0.5-300 microns(µm) |
Bag body types | Stitched, Welded |
Bag Ring types: | Plastic ring top, stainless steel ring top, Drawstring top,galvanized ring |
Bag bottom: types: | "Arc" shape bottom, "V" shape bottom,round bottom |
Item | Diameter x Length | Micron Rating (um) | Volume (L) | Flow(M3/H) | Filter Bag Area(m²) |
1 | 180*430mm | 0.1-500um | 8 | 20 | 0.25 |
2 | 180*810mm | 0.1-500um | 17 | 40 | 0.5 |
3 | 105*230mm | 0.1-500um | 1.3 | 6 | 0.09 |
4 | 105*380mm | 0.1-500um | 2.5 | 12 | 0.16 |
5 | 150*550mm | 0.1-500um | 7 | 18 | 0.3 |
