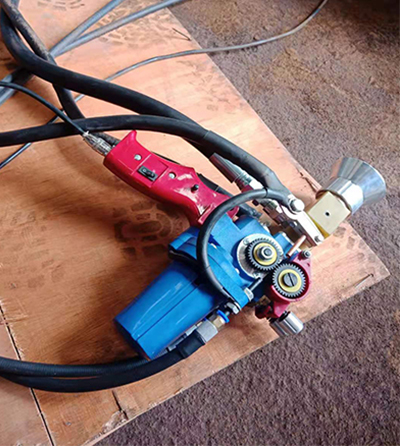

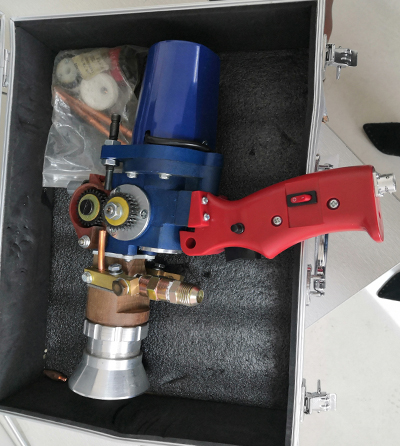

Arc spray gun/pull spray gun
The arc spray gun is mainly used with arc spraying machine, and it mainly has the following components
1. Nozzle assembly: arc hood, front duct assembly, air cap
2. Wire feeding power mechanism
3. Wire clamping mechanism
Parameter
Spray gun weight: 3kgs
Compressed air pressure: ≥0.6Mpa
Wire feeding force of spray gun: ≥8kgs
Spraying efficiency reference: 2mm zinc wire -200A-20kg/h
2mm aluminum wire-200A-6.5kg/h
Spraying materials: zinc wire, aluminum wire, lead-tin alloy, zinc-aluminum alloy wire, nickel-aluminum alloy wire, copper wire, stainless steel wire, etc.
