Chain link fence is also known as diamond wire mesh and rhombus wire mesh. Made of quality low steel wire, stainless steel wire, aluminum alloy wire and PVC wire.
Chain link fence comes in a wire range of qualities, colours , sizes and types. The chain link has for elements: fabric, framework, fittings and gates. Each of these components are available in a range of weights and types of coatings you can mix and match to save costs, be more unique. Select chain link fence fabric based on: gauge of wire, size of mesh and type of protective coating. Several types of surface treatments help protect and beautify steel chain link fences.
Assortments
Electro gal.chain link fence、Hot dipped gal. chain link fence、pvc coated chain link fence
Characteristics
(1)State and flexible
(2)Strong
(3)Does not break
(4)Does not sag or roll up the bottom
Application
(1)Steel high quality low carbon steel wire rod, then make into the thickness low carbon steel wire with the drawing machine.
(2)Surface treatment: Make the low carton steel wire into PVC wire, electric galvanized wire, hot-dipped galvanized wire. About zinc thickness of the hot-dipped galvanized wire, we can make as customers' required.

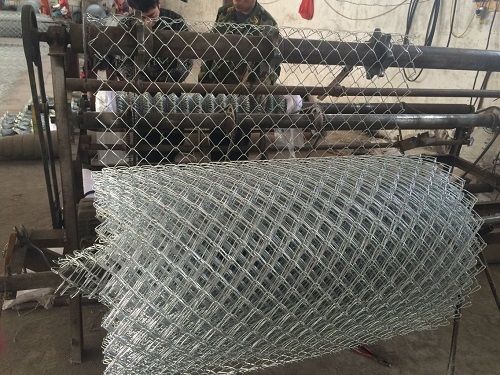

(3)Weaving: Using the development machinery to make surface treatment finished low carbon steel wire into per-forming form, then linking them together.
(4)The edge of the Chain Link Fence :It is divided into two types. One type is a twisted one. Using special tools to make the edge heming or twisting. The hemed edge is more popular compared with the twisted edge. Customers can choose to their own needs.

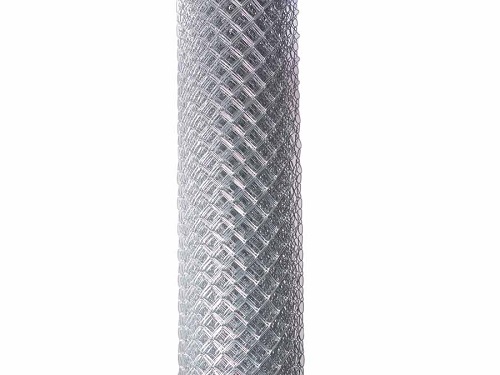

(5)The construction of chain link fence: we use the advanced machines to make the roll diameter of chain link fence into the smallest one, in order to save transportation costs by saving volume.
(6)Packing: Wrap up the two edges of the crimpled rolls with the weaving bags.
(7)Common specifications of chain link fence are as follows:
Specification List
Sizes;of;diamond;wire;mesh |
Opening | 1” | 1.5” | 2” | 2.25” | 2.4” | 2.5” | 3” | 4” |
25mm | 40mm | 50mm | 55mm | 60mm | 65mm | 76mm | 100mm |
Wire;diameter | 18#-7# |
1.20mm-5.00mm |
Roll;length | 1.0m-5.0m |
Roll;width | 0.5m-5.0m |
Material;and;specifications;can;be;made;as;customers’;requirements. |
